Handling User Data

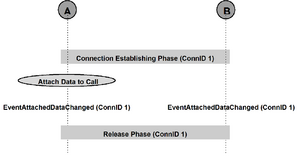

Attaching/Updating User Data to Internal Call

The following graphic and table describe attaching/updating user data to an internal call.

8 events and models-106.gif
Attaching/Updating User Data to Internal Call


PARTY A

PARTY B


Call-Establishing Phase (ConnID 1)


Attach User Data to a Call
(TUpdateUserData)


EventAttachedDataChanged
ConnID 1
ThisDN A
ThirdPartyDN A

EventAttachedDataChanged
ConnID 1
ThisDN B
ThirdPartyDN A

Release Phase (ConnID 1)

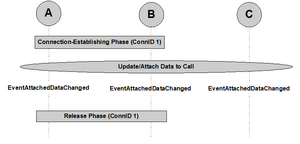

Attaching/Updating User Data to Call by Third Party

The following graphic and table describe attaching/updating user data to a call by a third party.

8 events and models-107.gif
Attaching/Updating User Data to Call by Third Party


PARTY A

PARTY B

PARTY C


Call-Establishing Phase (ConnID 1)




Attach User Data to a Call
(TUpdateUserData)

EventAttachedDataChanged
ConnID 1
ThisDN A
ThirdPartyDN C

EventAttachedDataChanged
ConnID 1
ThisDN B
ThirdPartyDN C

EventAttachedDataChanged
ConnID 1
ThirdPartyDN C

Release Phase (ConnID 1)
